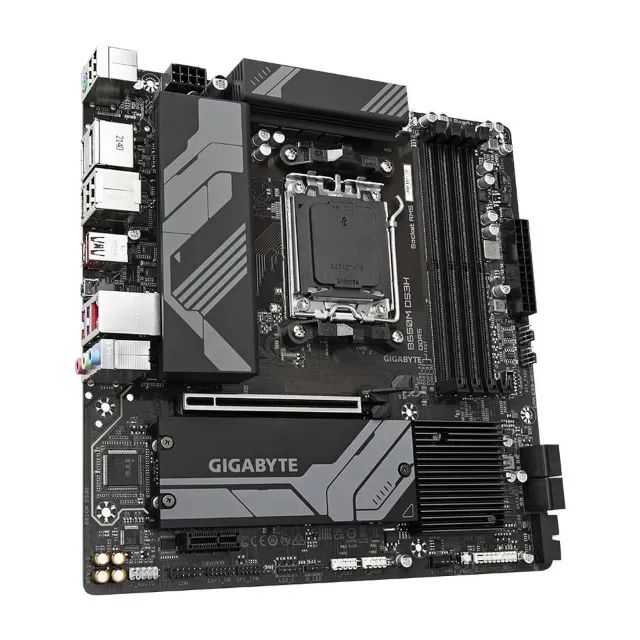

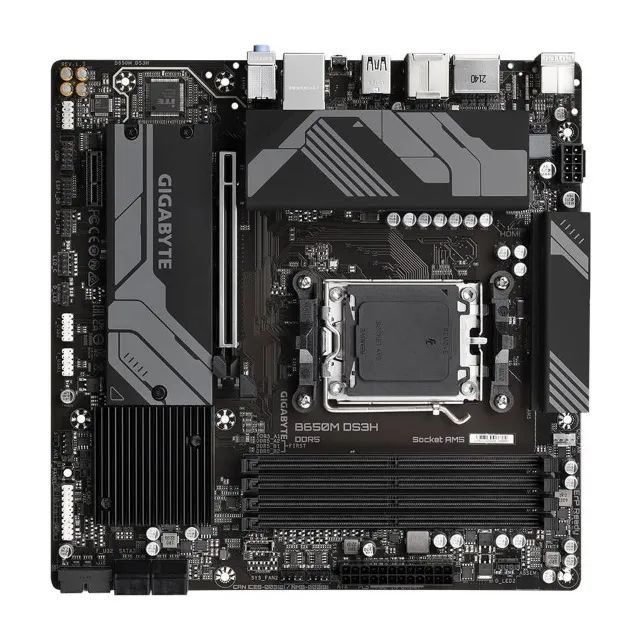

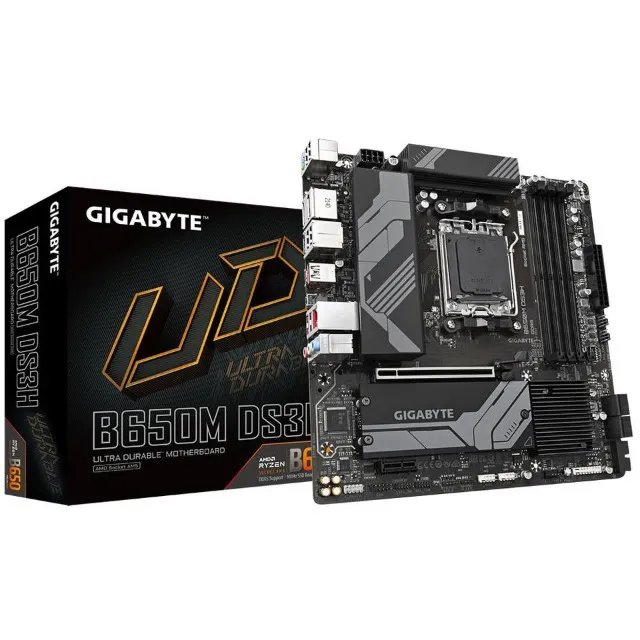

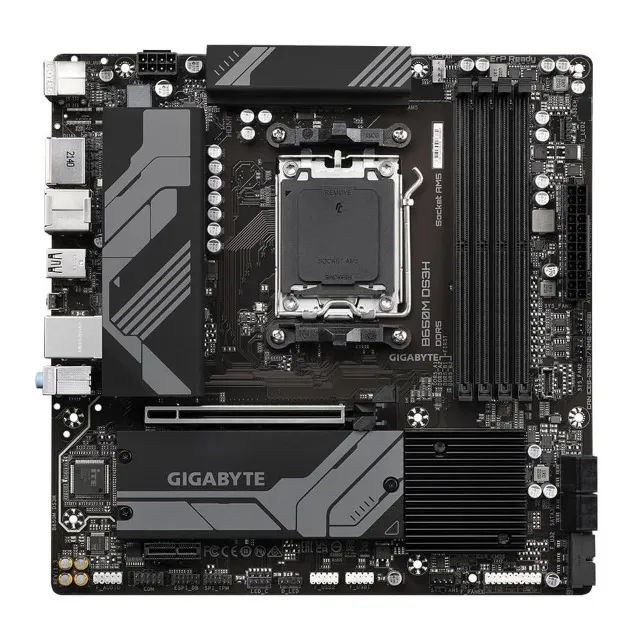

Placa Mãe GigaByte B650M DS3H (rev. 1.0) Ultra Durable
1. GigaByte / B650M DS3H (rev. 1.0)
2. Site do produto:
1. https://www.gigabyte.com/br/Motherboard/B650M-DS3H-rev-10-11-12#kf
2.
3. CPU:
1. AMD Socket AM5, support for: AMD Ryzen? 7000 / Ryzen? 8000 Series Processors
4. Chipset:
1. AMD B650
5. Memória:
1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory modules
6. Gráficos Onboard:
1. Integrated Graphics Processor:
2. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
4. Support for up to 3 displays at the same time
7. Áudio:
1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
8. LAN:
1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
9. Slots de Expansão:
1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
2. AMD Ryzen? 7000 Series Processors support PCIe 4.0 x16 mode
3. AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
4. AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
5. Chipset:
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
10. Interface de Armazenamento:
1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
1. AMD Ryzen? 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
3. AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
1. AMD Ryzen? 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
3. AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
3. 4 x SATA 6Gb/s connectors
4. RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
5. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
11. USB:
1. CPU:
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. CPU + USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
3. Chipset:
1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports available through the internal USB headers
4. Conectores Internos I/O:
1. 1 x 24-pin ATX main power connector
2.
3. 1 x 24-pin ATX main power connector
4. 1 x 8-pin ATX 12V power connector
5. 1 x CPU fan header
6. 3 x system fan headers
7. 1 x addressable LED strip header (D_LED1)
8. 1 x RGB LED strip header
9. 2 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
17. 1 x serial port header
18. 1 x reset button
19. 1 x reset jumper
20. 1 x Clear CMOS jumper
12. Conectores Painel Traseiro:
1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x DisplayPorts
4. 1 x HDMI port
5. 1 x USB 3.2 Gen 2 Type-A port (red)
6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 2 x USB 3.2 Gen 1 ports
10. 3 x audio jacks
13. Controlador I/O:
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
14. BIOS:
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
15. Características Exclusivas:
1. Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
16. Pacote de Software:
1. Norton® Internet Security (OEM version)
2. LAN bandwidth man
